Heavy Radiator ( preview )

  •
  •
  •
  •

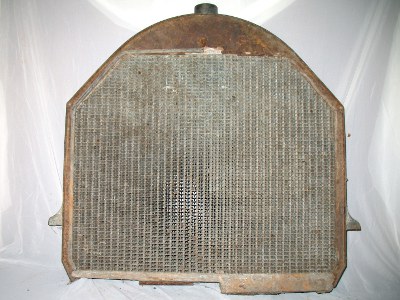

front view of heavy radiator
front view

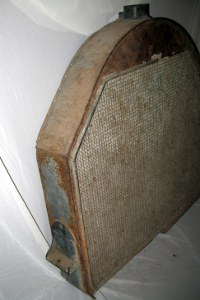

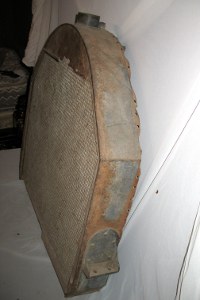

side view of heavy radiator side view of heavy radiator
side views

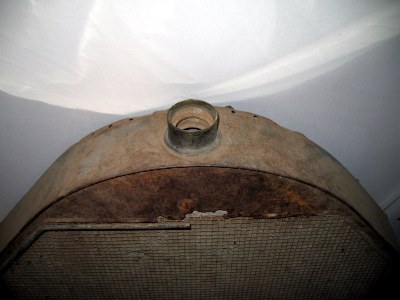

top view of heavy radiator
top view

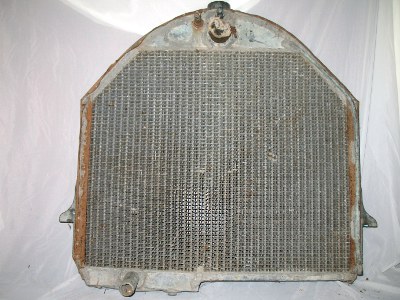

back view of heavy radiator
back view

Heavy and very large radiator. Brass core with stell shell and cast brass mounting brackets just above each hip. Two holes to mount on each bracket at 1-5/8 inch centers.

26½ inches wide at the shoulders, 26½ inches wide at the hips, 24½ inches wide at the base, 26½ inches tall to the bottom of the neck. ½ inch wide attached hood former with 2¼ inch throat with inside threads for cap. No cap present.

Square pattern face.
